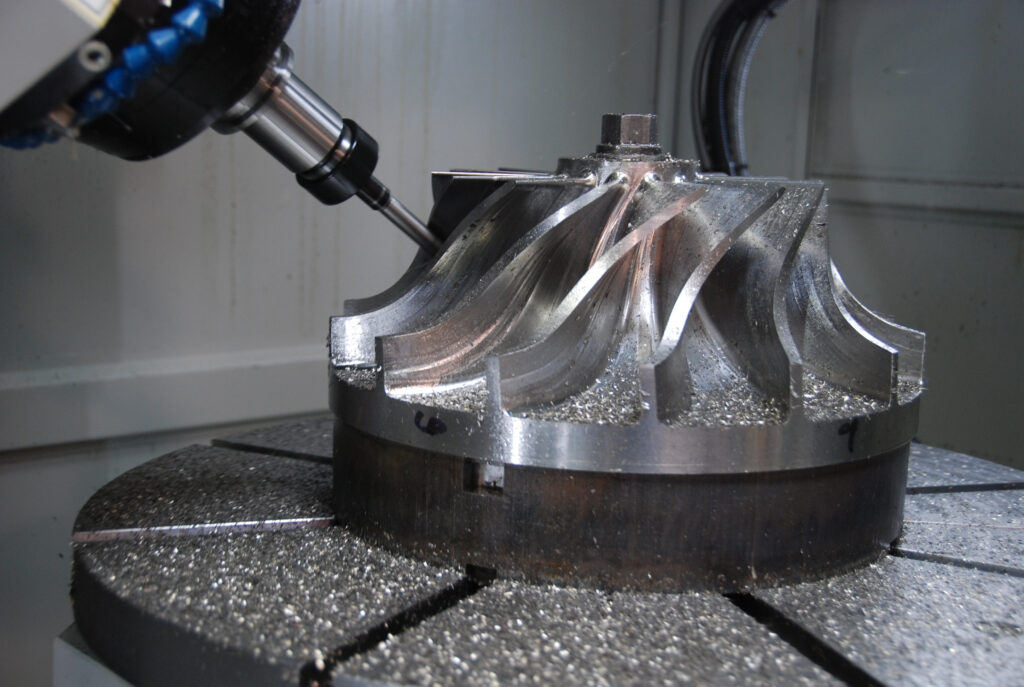

Milling machines are prevalent machine tools utilized widely in contemporary manufacturing. People use milling machines in many places, such as home workshops, factories, and assembly lines. They exist in almost every industry, from automotive machining centers to small mills used in scientific labs. This article describes the various types of milling machines.
What Is A Milling Machine?
A milling machine is a machine that facilitates the rotation of a circular tool having several symmetrically arranged cutting edges about its axis. Typically, the workpiece is fixed to a surface as a vise or clamped device, allowing it to rotate in three perpendicular directions.
Milling machines are frequently employed to machine irregular and level surfaces of substantial materials, such as wood, plastic, and metal. Unlike a lathe, which has the component itself rotate while the cutter does so, the lathe does not incorporate rotation into the cutting process. Check out the Boruimc milling machine.
Types Of Milling Machines
1. Vertical Milling Machine
On a vertical milling machine, the spindle is positioned perpendicular to or vertically to the table. This machine can also machining grooves, cavities, and planar surfaces.
A vertical column to which the spindle head is affixed rotates at an angle. The spindle connects with the milling device to manipulate angular surfaces. Specific vertical milling machines feature an up-and-down-adjustable spindle.
A vertical milling machine is a specialized instrument that fabricates and shapes metallic workpieces by removing stock. Depending on the tooling and material, the mill can machine various materials, including plastics.
2. Horizontal Milling Machine
Hand millers are less robust than plain milling machines. Horizontal milling machines refer to plain milling machines featuring such spindles. You can supply data to the table in a horizontal, transverse, or vertical direction.
Horizontal milling machines position a cutting tool attached to a spindle horizontally. This spindle can carefully take material from a fixed workpiece. In addition, horizontal milling machines typically have cutting instruments distinct from those of vertical milling machines.
A spindle housing a rotating cutting tool exerts pressure against a workpiece in horizontal milling machines, thereby facilitating material removal from the workpiece. Despite this, horizontal milling machines are distinct in several ways from their vertical counterparts.
3. Universal Milling Machine
A universal milling machine has a table that moves in all directions. The machine also has a head with changeable gears. These gears are used for different cutting tasks.
It can change to do a lot of different things. From its regular position, the table can turn up to 45 degrees on both sides. Another thing that makes the horizontal milling machine stand out is that its table can move in four directions.
4. CNC milling Machine
CNC milling is a machining process that uses computer controls and cutting tools. It makes a workpiece smaller and creates a specific part or product.
In a CNC Milling Machine, a circular cutter spins and moves in several directions to cut the material into slots, holes, and other shapes that can be used to make parts for cars or machines. Most machines have three to five axes, making them more precise and detailed.
5. Duplex Milling Machine
When the item can be made with two spindles simultaneously, a duplex milling machine can work as a single machine or as two different machines. The spindle can move both left and right.
The main benefits of the duplex solution are:
- Up to 50% more production than with traditional methods, like using individual milling machines
- Better part accuracy because the part can usually be machined in a single setup
- Less effort and room are needed than two single machines on their own
6. Rotary Table Milling Machine
With rotary milling, you can do 2D and 2.5D cutting processes on or around the end of a cylinder. The tool can only move in a straight line along the rotating shaft and around it when rotational cutting (around the cylinder). The tool is always pointing outward from the center of the rotating shaft.
It has a round table that moves around on a vertical line. Several tools need to be set at different heights. One cutter on the machine roughs up the piece of work, and the other cuts smooth out the surface.
Conclusion
There are a lot of different kinds of milling machines, which you now fully understand.
All machines have their pros and cons. The goal is to find one that fits your needs. Having a suitable machine is essential no matter what level you are at. If you don’t know how to choose, please contact CNC machine experts: boruimc.com
